ELECTRONIC MANUFACTURING SERVICES

SMG’s EMS division focuses on customer specific electronic manufacturing solutions including design and engineering support, prototyping, PCBA production, assembly, box builds, supply chain management, and after-market support.

WE SPECIALIZE IN:

Low to medium volume OEMs and industrial producers
Customized hardware & software solutions to meet customer specific needs
Transportation industry with a focus on clean technology
Ruggedized designs to meet the challenges of harsh environments

ELECTRONIC MANUFACTURING SERVICES

DESIGN AND ENGINEERING SOLUTIONS

PRODUCT DESIGN

Early product development including industry and customer specification reviews, feasibility, simulation and prototyping
FMEA
Systems level design
Mechanical design
Printed circuit board layout
Analog and digital circuit design
Embedded Software design and implementation
Compliance/regulatory testing

smartrend electronic manufacturing services

VALUE ENGINEERING

DFSC
DFA
DFF
DFT
DFM

DFSC (Design for Supply Chain)
DFA (Design for Assembly)
DFF (Design for Fabrication)
DFT (Design for Test)
DFM (Design for Manufacturing)

SMG works with customers to identify opportunities for cost reduction through every step of your project

PROTOTYPING

Low volume PCBA manufacturing
3D printing & machining of mechanical components
Proof of concept software development

Electronic Manufacturing and Box Build Integration

Mechanical fabrication and Assembly

Mechanical component supply
Cable and harness assembly
Assembly of mechanical components

New Production Introduction

NPI planning and KPI dashboard
Supplier and component selection, qualification and optimization
Product development and production pricing models
Design for Manufacturability (DFM) and Test Strategy

PCB Assembly and Testing

PCBA Manufacturing
- Advanced SMT, THT manufacturing
- No-clean and lead-free processing
- Automated conformal coating and potting
- Rework to IPC610 Class A standards
Testing Capabilities
- 3D AOI
- 2D X-ray inspection
- PCBA test
- Environmental verification testing
- System level test
- Configure-to-order

Process Controls

Process flow
Engineering specifications
Supplier performance measurements
Process capability measurements
Lot and serialization capabilities

Production Test Development

Test fixture design and implementation
Data management and analysis

smartrend electronics inspection and development

Printed Circuit Board Assembly

SMG has state-of-the-art manufacturing equipment to provide SMT and THT PCBA technology.

ELECTRONICS SMT LINE

Sophisticated pick-and-place SMT lines, offering flexible production with state-of-the art 3D AOI for accurate and efficient quality inspections.

Universal Dual Beam Pick and Place
Universal PTF (Platform Tray Feeder)
Heller Reflow Oven
Mirtec 3D AOI
Glenbrook Technologies RTX-113HV XRAY Inspection Station
PVA Selective Conformal Coating System
UV Light Curing Conveyor System for Conformal Coating
Speedprint Stencil Printer

MACHINE SHOP

Prototype and low production run capabilities:

3D Printing
Zund Cutting System
Haas CNC Mill

PRINTING

Full art department with printing capabilities:

HP R2000 Plus – Digital Flatbed Printer
HP L365 – Digital Roll to Roll Printer
M&R Screen Print Press
M&R PHOTON UV LED Screen Print Curing System

Global Supply Chain Management

SMG’s procurement team ensures the integrity of all components that go into our customer’s assemblies.

Material Requirements Planning (MRP) and Product Life Management (PLM) Systems
Approved Vendor List (AVL) management of authorized and reputable domestic suppliers
Proactive part substitution and replacement strategies

After-Market Services

SMG’s procurement team ensures the integrity of all components that go into our customer’s assemblies.

Analysis of field problems and defining remediations
Field product support and troubleshooting
Overcoming regulatory barriers
Black Box testing

Customizable SMG Platforms

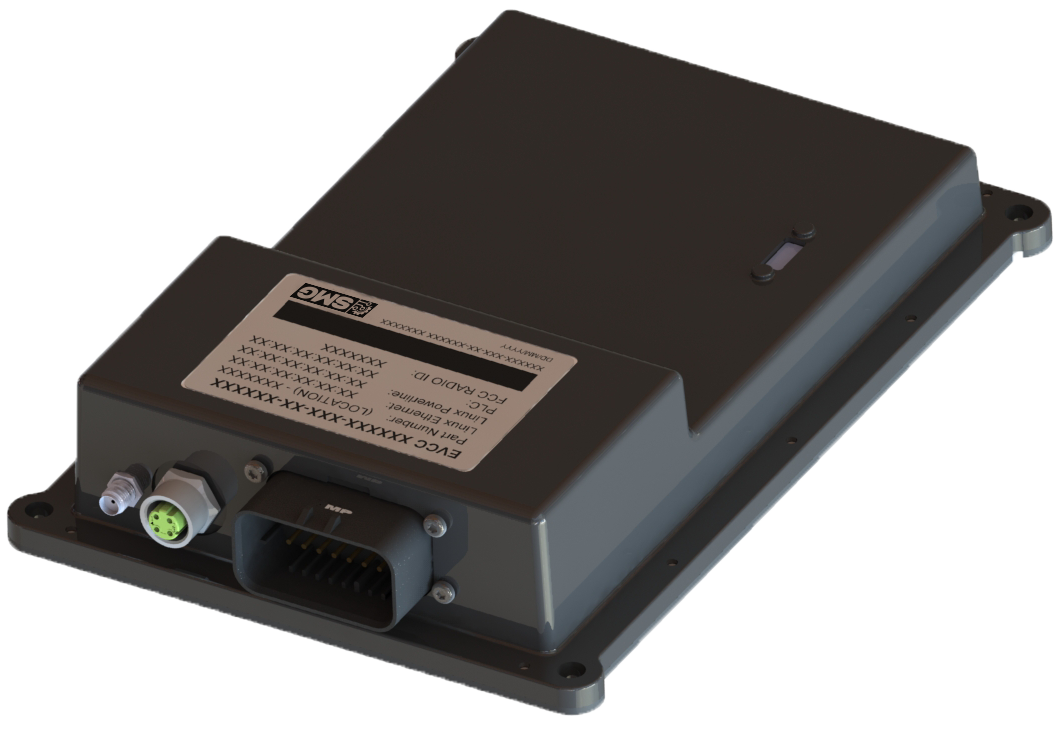

Electric Vehicle Communications Controller (EVCC)

9-32 Vdc Operational
-40C to 85C Operational
SAE J1939 or Standard CAN communications to BMS
HPGP Compliant using SAE J1772 signalling
Depot Support
- ISO 15118-1,2,8,20 Compliant
- SAE J3105A/B compliant
Receptacle Control
- Lock status
- Motor Latch Control (Two Full Bridge Outputs)
- Temperature monitoring
3 Low current High side outputs for LED’s
2 Medium current full bridge outputs for vehicle wakeups or medium load outputs
Support multiple analog and binary inputs
- Analog inputs for temperature or raw analog values
- Binary inputs for either dry or wet contacts
802.11a/b/g/n WiFi module with certifications for multiple high gain directional antenna’s for Pantograph operation
Ethernet interface for programming, debug, and future support via M12 D Code
Universally adaptable via configuration file
Further adaption to vehicle can be planned via our internal application engineering team

SMG Universal Distributed Controller (SUDC0404)

9-32 Vdc Operational
-40C to 85C Operational
SAE J1939 or Standard CAN communications
Universal 4 inputs (Dry/wet contact, 0-Vbatt Analog, 0-200kohm resistive, Vabtt/gnd binary)
Universal 4 outputs (5Amp high side, 5Amp low side, 0-10Vdc Analog or PWM)
Ethernet interface for programming, debug, and future support via M12 D Code
CodeSys Based
- Application programming in Ladder Logic or C
- Standard libraries for RTOS
  - CANopen/J1939
  - Ethernet
Further adaption to a customer’s vehicle can be planned via our internal application engineering team or via the customer’s team using our API and CodeSys

Contact us to discuss customizing one of these
platforms for your application.

CASE STUDIES

Electric Vehicle Communication Controller

CASE STUDY NFI GROUP

OVERVIEW

SMG was providing a service of packaging the previous EVCC supplier’s hardware in an in-house designed mechanical enclosure to provide environmental protection to the product. Because of the life phase of the product, reliability concerns from the market, and SMG’s close location to the customer we saw an opportunity to better support them through a custom designed module.

SMG engaged with the customer’s engineering team to fully understand their system requirements and designed an EVCC platform from the ground up for their specific application complying with the various industry standards required in this field.

THE RESULT

The resulting product is the first North American designed EVCC that encompasses industry leading functionality including compliance to the latest ISO 15118 standards for depot and pantograph charging as well as Vehicle-to-grid (V2G) functionality. The electronics were designed around a newly introduced Power-line Communications PLC to ensure long term availability in the market. Overall, the platform will continue to be updated as ISO 15118 and related standards evolve. It went from whiteboard concepts to physical prototypes in 12-months and release to market in 24-months.

CONCLUSION

SMG’s EVCC product is manufactured in-house at our Winnipeg facility using a state-of-the-art SMT manufacturing line as well as our mechanical assembly capabilities. Off-the-shelf electronic components are sourced through our distribution network with custom mechanical components sourced internationally through our in-country procurement teams. Our in-house production and sourcing capabilities allowed SMG to provide a competitively priced product to the customer.

NFI GROUP

New Flyer Electrical Engineering team first engaged with SMG in 2021 to discuss a joint development partnership for a next-gen controller for our vehicle platform. By early 2022, we had a full product requirements document in place and had fully kicked-off the development efforts. As we approach the final quarter of 2023, we are now wrapping up final prototype testing and completing initial production cut-in launch plans. While the final production launch is still in progress, overall, New Flyer has been very pleased with the level of engagement and responsiveness of the SMG team in expediting issue resolution as well as the adaptability that has been shown in adjusting product requirements throughout the testing and validation process. Overall, the project has remained on track so far thanks to the hard work and cooperation that continues to be fostered across our mutual Engineering teams.

Brydon Owen

Director of Electrical Engineering
